從作用、技術細節兩方面來了解手板使用
來源：http://www.scyyst.com作者：山東嘉瑞杰機械科技有限公司發布時間：2022-06-28
手板是在不開模檢查外觀或結構合理性的情況下，根據產品外觀圖或結構圖制作的一個或多個功能模板。所以為了有更好的效果，需要提前了解產品。讓我們了解一下手板的功能。
The hand board is one or more functional templates made according to the product appearance drawing or structure drawing without opening the mold to check the appearance or structure rationality. Therefore, in order to have better effect, it is necessary to know the product in advance. Let's learn about the function of the hand board.

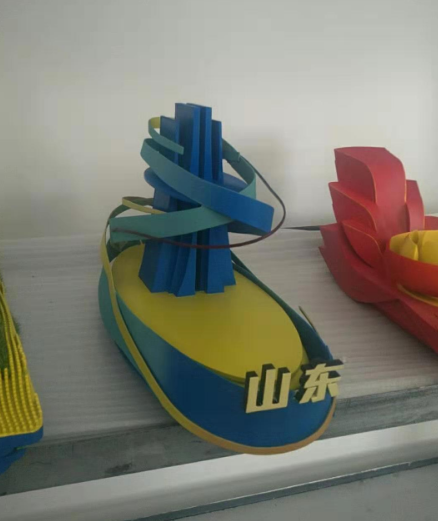

手板
Hand board
檢驗設計手板不僅可見，而且可觸摸，因此手板能夠以實物的形式直觀地體現設計者的創造力，避免了“畫得好看不好看”的弊端。因此，手板設計在新產品開發和產品形狀審查的過程中是必不可少的。
The inspection design hand board is not only visible, but also touchable. Therefore, the hand board can intuitively reflect the creativity of the designer in the form of physical objects, avoiding the disadvantages of "good-looking painting but not good-looking painting". Therefore, hand board design is essential in the process of new product development and product shape review.
檢查結構設計由于樣機可拼裝，樣機能直觀地反映產品結構的合理性和安裝的難易程度，便于早期發現和解決問題。
Check the structural design. Since the prototype can be assembled, the prototype can intuitively reflect the rationality of the product structure and the difficulty of installation, so as to facilitate the early detection and solution of problems.
避免直接開模的風險。由于模具制造成本普遍較高，較大的模具價值幾十萬甚上百萬。如果在開模過程中發現結構不合理或其他問題，損失可想而知。手板制作可以避免這種損失，降低開模風險。
Avoid the risk of direct mold opening. Because the mold manufacturing cost is generally high, the larger mold is worth hundreds of thousands or even millions. If unreasonable structure or other problems are found during mold opening, the loss can be imagined. This kind of loss can be avoided and the risk of mold opening can be reduced by making the hand board.
使產品發布時間更早。由于樣機制作的性，您可以在模具開發前利用樣機來推廣產品，甚可以進行售前和生產準備工作，以盡快占領市場。
Make the product release time earlier. Due to the progressiveness of prototype production, you can use the prototype to promote products before mold development, and even carry out pre-sales and production preparations to occupy the market as soon as possible.
手板制作技術細節
Technical details of hand board manufacturing
常規產品手板一般由ABS材料制成。這種材料易于加工，手板的后加工也很漂亮。
Conventional product hand boards are generally made of ABS materials. This kind of material is easy to process, and the post-processing of the hand board is also very beautiful.
高溫產品手板，可選材料（1）環氧樹脂；(2)電木；（3）黑色PC；(4)PA（尼龍）。除了黑色PC可以粘合外，其他三種材料都不能粘合，需要整體加工。
High temperature product hand board, optional materials (1) epoxy resin; (2) Bakelite; (3) Black PC; (4) PA (nylon). Except the black PC can be bonded, the other three materials cannot be bonded and need to be processed as a whole.
耐磨產品手板，可選POM或PA。這兩種材料無法粘合制作手板，需要整體加工。
Wear resistant product hand board, optional POM or Pa. These two materials cannot be bonded to make a hand board and need to be processed as a whole.
高韌性產品手板，可選擇PA或PP。這兩種材料無法粘合制作手板，需要整體加工。
High toughness product hand board, PA or PP can be selected. These two materials cannot be bonded to make a hand board and need to be processed as a whole.
透明產品手板，可選PMMA（亞克力）、透明ABS、透明PC等材質。由這些材料制成的手板經過拋光處理，透明度高，達到與實物相同的效果。
Transparent product hand board, PMMA (acrylic), transparent ABS, transparent PC and other materials can be selected. The hand board made of these materials is polished with high transparency to achieve the same effect as the real object.
濟南手板的表面處理一般分為噴油、電鍍、磨砂、絲印、移印等表面效果。手板注油分為光面、啞光、沙色、透明、半透明、熒光、橡膠油等效果。
Jinan hand board surface treatment is generally divided into oil spray, electroplating, sanding, silk screen printing, pad printing and other surface effects. Hand board oiling can be divided into smooth, matte, sand, transparent, translucent, fluorescent, rubber oil and other effects.
以上就是問題解答的相關內容了，希望能夠幫助到大家，如對這一問題還存在任何疑問，都?xì)g迎關注我們網站http://www.scyyst.com并咨詢我們的工作人員，將竭誠為您服務。
The above is the relevant content of the question answer. I hope it can help you. If you still have any questions about this problem, you are welcome to follow our website http://www.scyyst.com And consult our staff, will serve you wholeheartedly.
